Nilight Anderson Connector 175AMP 4AWG Anderson Plug 12V-36V Battery Quick Connect/Disconnect Wire Harness Plugs Connectors Kit for 4 Gauge Cables Car Marine ATV Trailer Towing Winch Motor, 2 Pack Red
Product details
| Management number | 234263649 | Release Date | 2026/06/27 | List Price | US$5.60 | Model Number | 234263649 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

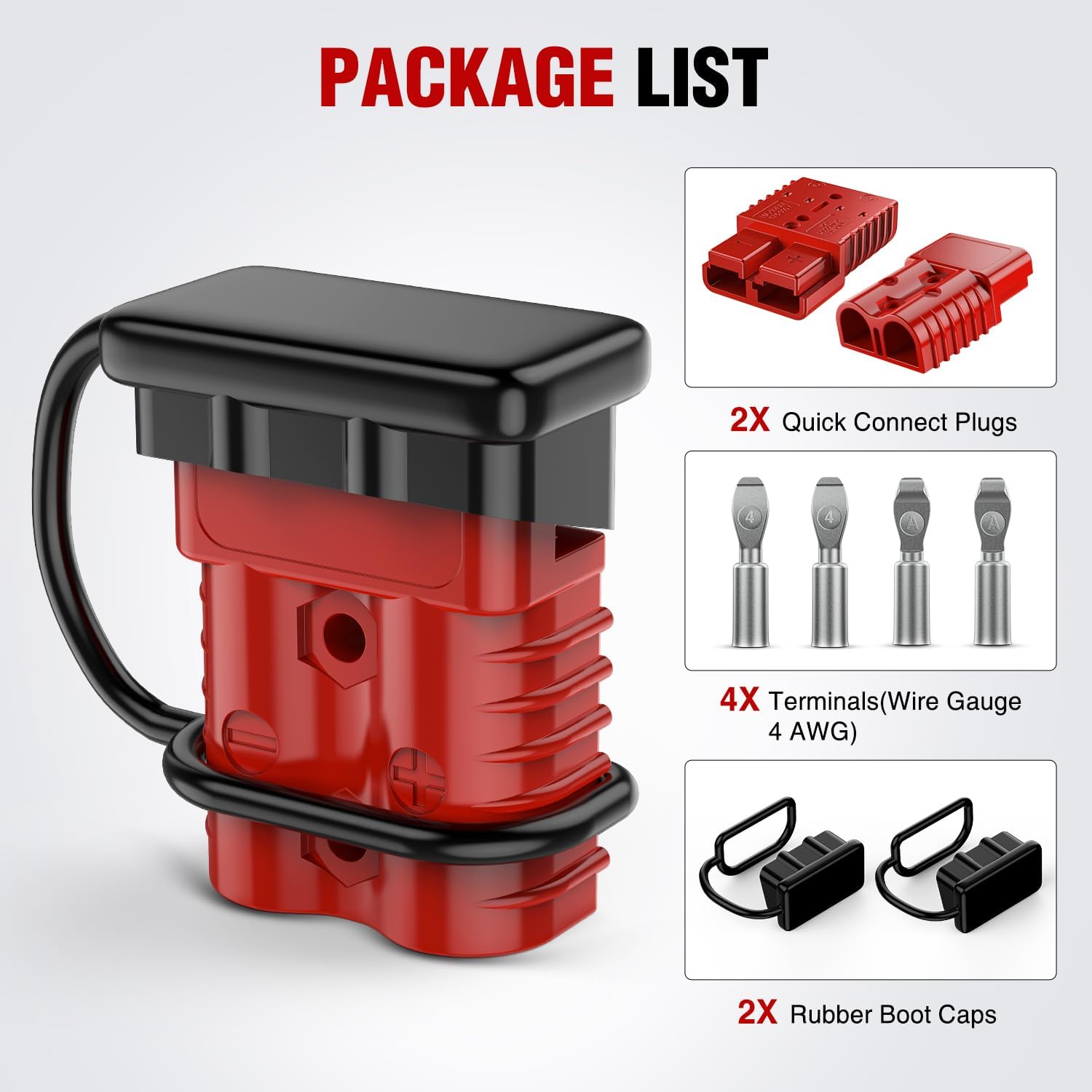

- SPECIFICATION: This Battery Quick Connect/Disconnect Connector Set for 4-gauge battery cables supporting 12V, 24V or 36V batteries up to 175A. Rated Voltage: 600V. Operating Temperature Range: -4°F~176°F / -20°C~80°C. Fire Rating: UL94V-0. Package Includes: 2 x Anderson Connect Plugs, 4 x Terminals (for Wire Gauge 4 AWG), 2 x Rubber Boot Caps. Please confirm the compatibility before purchasing
- RELIABLE PERFORMANCE: Each anderson connector kit housing is made of high-quality flame-retardant PC material and comes with a rubber dust cover for dust, water, and fire protection, ensuring greater safety. The terminal pins are made of silver-plated copper to minimize resistance and improve stability and reliability. The Inner locking spring tab are made of 65Mn material, which is rust-proof and prevents poor contact after prolonged use, providing lasting performance for all your battery fast connection needs
- EASY INSTALLATION: The anderson plug connectors features built-in texture and polarity markings to aid in correct wiring, simplifying installation and facilitating quick connection and disconnection. First, strip the insulation from the wires and insert them into the terminal pins, then secure them with crimping pliers (make sure pin A is facing upwards). Second, insert the terminal pins into the connector housing and lock them in place. Finally, connect the two plugs together and cover them with rubber boot caps
- IMPORTANT SAFETY NOTICE: You are viewing 2pcs 175 Amp Red Anderson connectors with a unidirectional connection and color-coded housing design. It cannot be used with Gray 175A connectors, nor with 50A, 120A, or 350A connectors. Color and current rating matching is crucial for proper connection. Please carefully compare colors and sizes to avoid inconvenience caused by incorrect purchase
- WIRE CONNECTOR APPLICATION: This battery quick connect disconnect harness plug kit is suitable for Marine ATV Trailer Towing Winch, automotive, RV, elevators, cranes, marine, remote battery connectors, power inverters, solar panels, trailers, and other equipment requiring high-current, quick-disconnect connectors. Whether you're using quick-connect jumpers for emergency power or routine maintenance, this connector ensures an efficient and safe connection. If you encounter any problems during use, please feel free to contact us
| ASIN | B0G522SNF4 |
|---|---|
| Brand | Nilight |
| Model | Nilight Anderson Connector |
| Item Weight | 9.9 ounces |
| Manufacturer | Nilight |
| Item model number | 50178R |
| Package Dimensions | 6.26 x 4.22 x 1.5 inches |
| Manufacturer Part Number | 50178R |
